Berkeley Heights, NJ
Array size – 6.72kW DC
Solar Modules –28 Jinko Solar JKM240M-60 240Wp
Inverter – Sunny Boy SB6000US
Racking – Iron Ridge XRS Rails

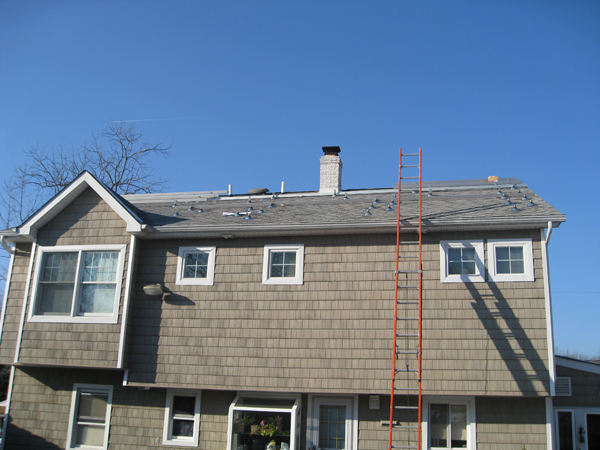

A two story, single family dwelling in Berkeley Heights, NJ. While this particular home had great southern exposure, two medium sized trees located on the western side of the house needed to be removed to ensure excellent afternoon production by the array. Additional bracing for the roof rafters was required to evenly distribute the dead weight and wind loads added by the array to ensure the integrity of both the array and the roof itself. This was done after calculations by our structural engineer showed that the existing rafters would have been overstressed by the addition of a solar array.
